Description:

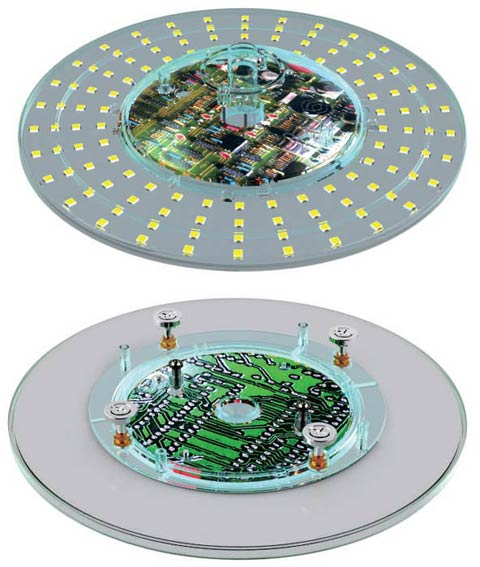

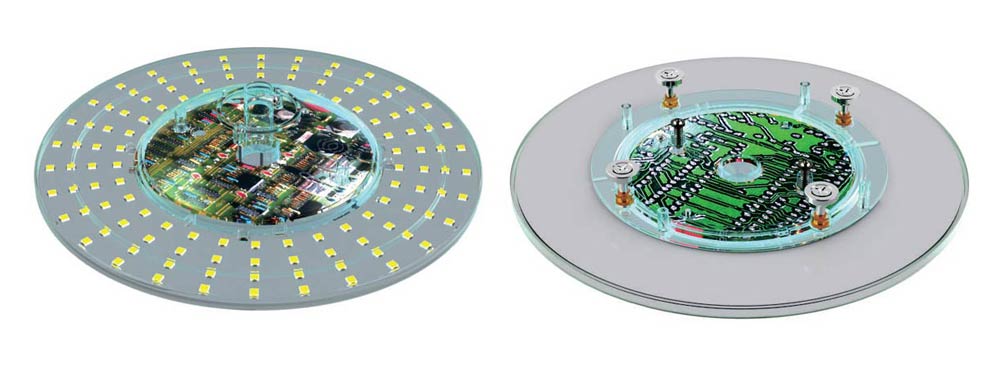

tLight intelligent LED Retrofits (ILR) are desinged to provide the lighting industries with a revolutionary solutation to upgrade to the latest LED technoligy, It is not just apated to the LED technology, but also, adapt to the latest technology of the Home Automation, our tLight InControl Home Automation system. With our App, which is available free to be downloaded from Apple App Store for iPhone/iPad, and our website for the Andorid phone, our ILRs can be controlled by iPhone or Andriod phone, it is not just switching on and off, 1% to 100% dimming, but also allow users to change the color temperatures as well. Our ILRs can be adjusted to any color temperatures at any time that the users preferred. Users can also associately use our intelligent PIR sensor (IPS201) to set the automatic functions, for example when you come to your home or office, your light can always truned on at the level and color that you preferred automatically. You can also remote control your ILR lighting fixtures from anywhere that you wanted as far as your iPhone can access the internet, so no more forgetting switching off your lights. With our patented designs, most of the existing ceiling fixtures, pendants, portable lamps, torhcieres are easily to adapt to our ILRs without wiring and screwing. Which means you can trun your regular fixtrues to be intelligent LED fixtrues in just a mintue, this is just as easy as changing a light bulb.

Features:

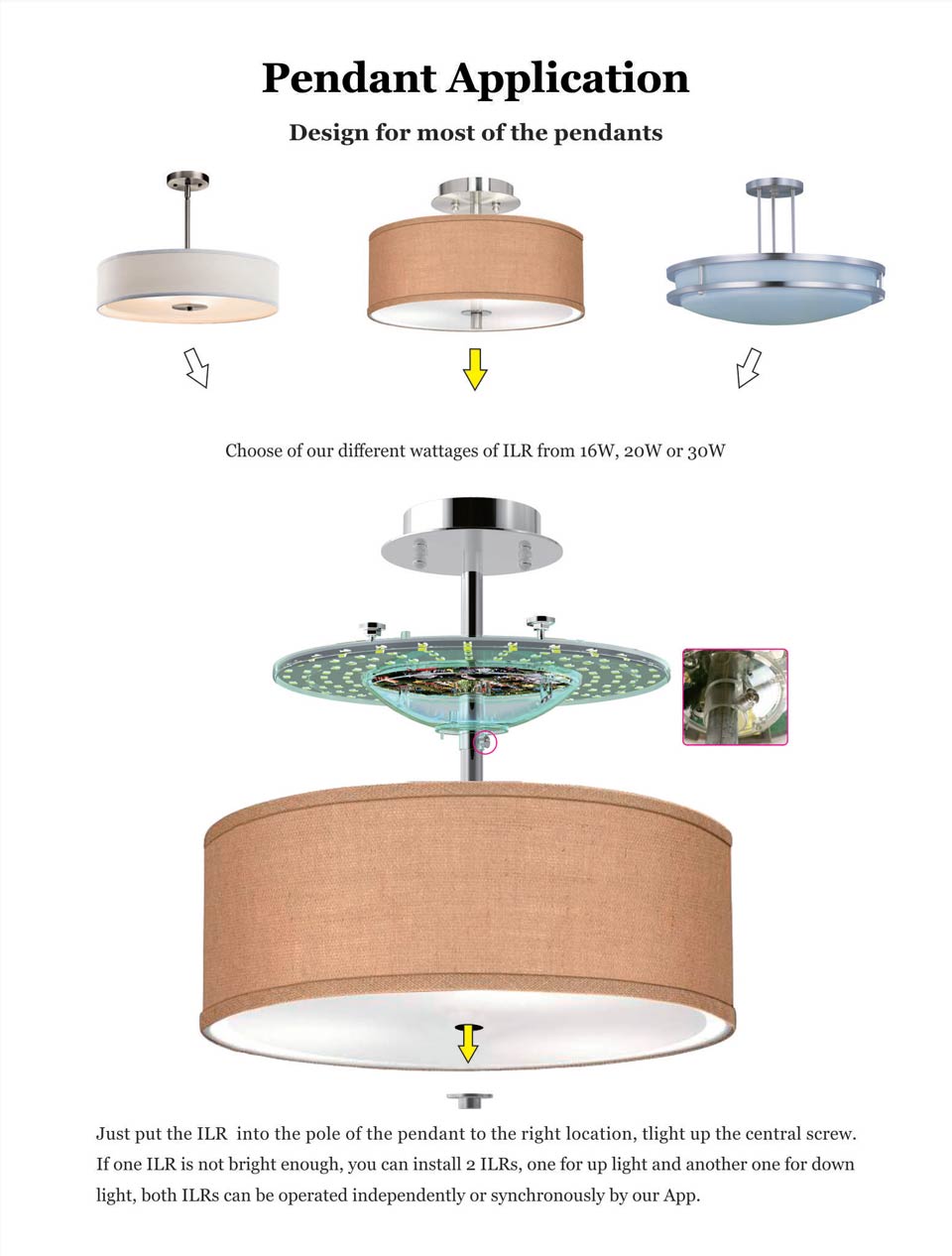

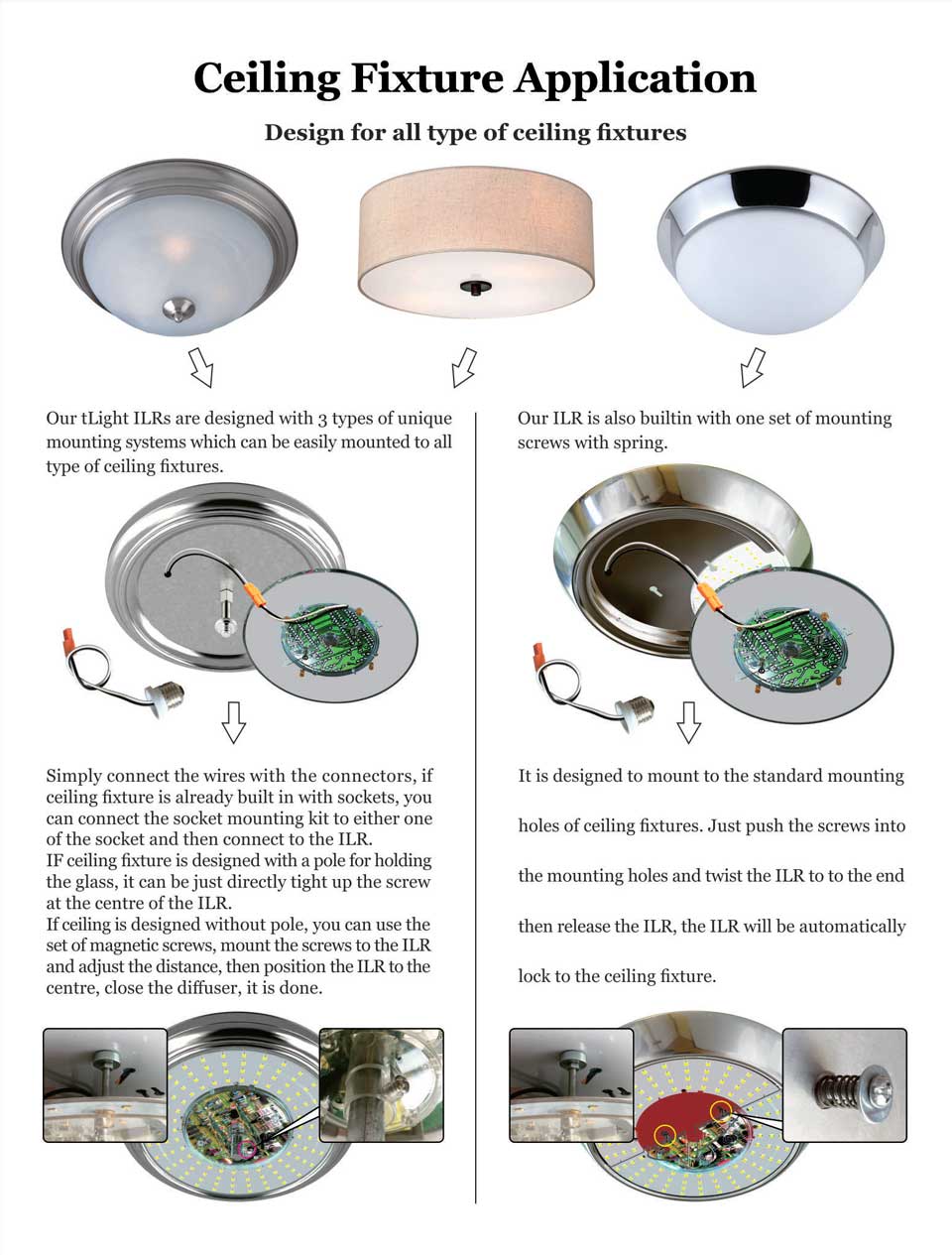

Multiple mounting systems provided, design for plug & play Adapted ISM Band, IEEE 802.15 standard Work with intelligent PIR Sensor (ISP201) for automatic switching "True Color" LED light, 93 CRI, one of the light closest to the natural sunlight. Dimming range from 1% to 100%. Color temperature changeable from 2700K-6400K. No competent electrician is required for installation# Multiple

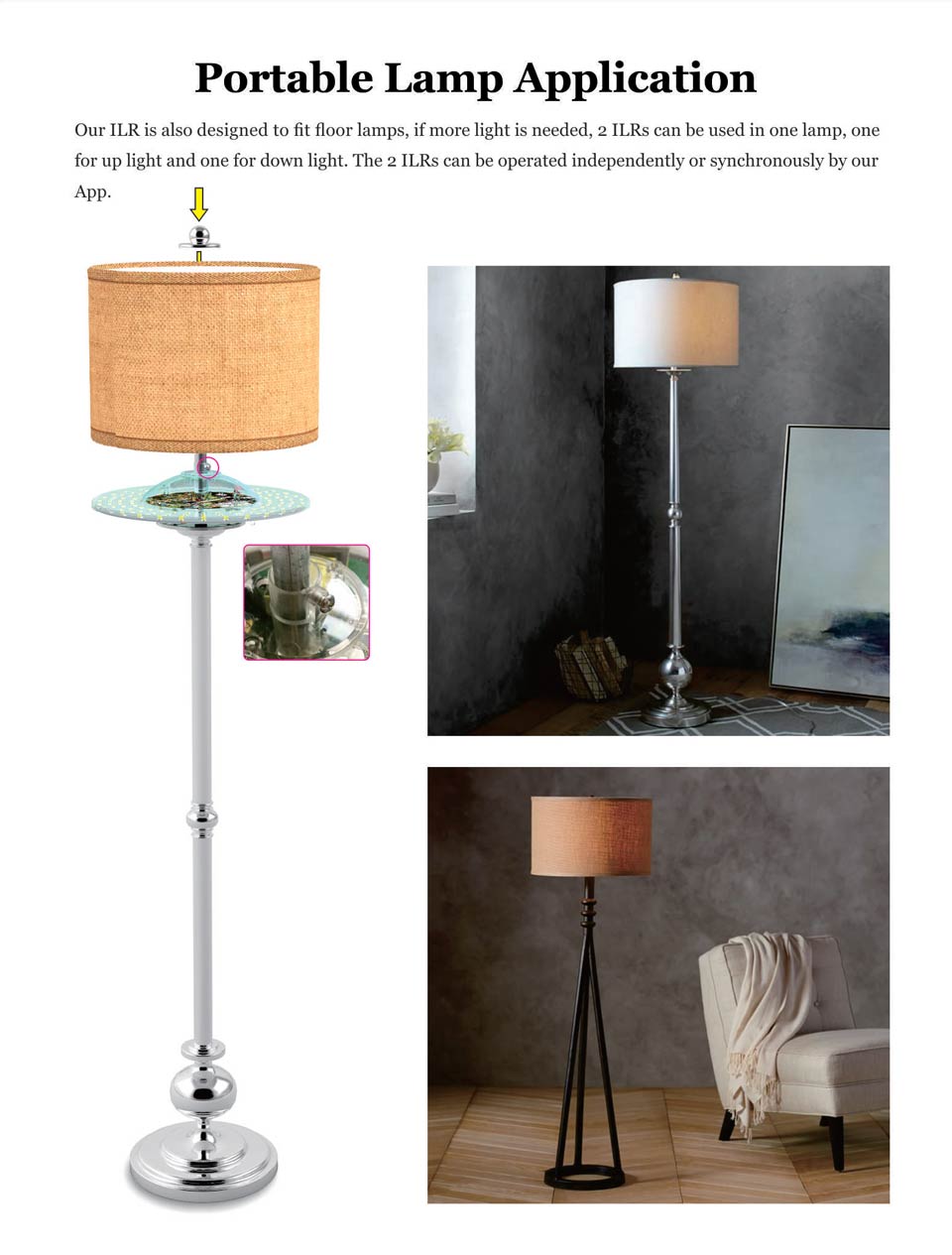

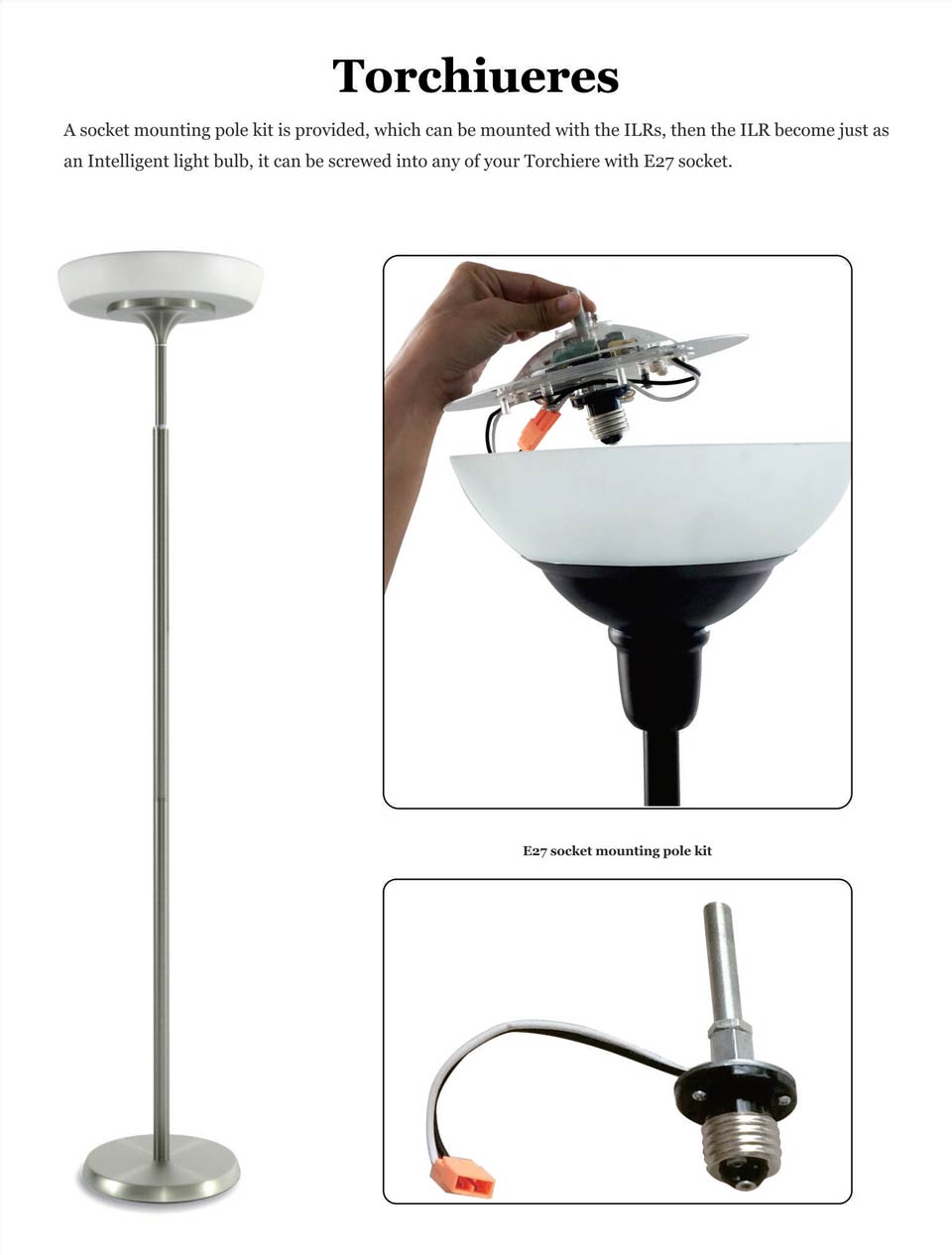

wattages available from 16W to 30W Suitable for Industrial and Residential Fixtures Suitable for Ceiling Fixtures, Pendants, Floor Lamp, Torhchiers. 5 years warranty

Requirements:

1) A WiFi network which can be your existing WiFi router and adding a tLight USB InControl Gateway (sell separately)
2) Anyone of those tLight LED desk lamp; E3msia, E3ia, S3xia, S3xmsia, E4ia, E4msia, E5ia, E5msia (Those tLight desk lamps are built with WiFi router and repeater, and also built with tLight InControl Gateway)
3) Anyone of those tLight LED desk lamp, E3msi, E3i, S3xi, S3xmsi, E4i, E4msi, E5i, E5msi and adding a tLight USB InControl gateway. iPhone, iPod, iPad or Android phone


LED_Retrofits tLight InControl APP

LED_Retrofits LED_Retrofits LED_Retrofits LED_Retrofits
The Most Talented Light


MC2316

MC2320

MC2330

  • Input Wattage:
  • Delivered Lumens(lm):
  • Equivalent Wattage:
  • Diameter:
  • Weight(g):
  • 16W
  • 1760
  • 100W INCAN
  • Φ6.8"(175mm)
  • 300
  • 20W
  • 2200
  • 150W INCAN
  • Φ8"(175mm)
  • 330
  • 30W
  • 3300
  • 200W INCAN
  • Φ8"(175mm)
  • 330
  • Input Voltage Range(V):
  • Efficacy (lm/W):
  • Color Rendering Index(CRI):
  • Color Temperature(CCT):
  • Dimming Range:
  • Dimming Device:
  • APP:
  • Associated Device:
  • Communication:
  • Operating Frequency:
  • Gateway Requirement:
  • Beam Angle:
  • Power Factor:
  • MAX THD(%):
  • Ambient Temp(F):
  • LM-79:
  • LM80(8000Hours):
  • Safety:
  • Fixtures fitting:
  • Height:
  • Life:
  • Warranty:
  • Energy Star®:
  • LED Lighting Facts®:
  • 100~240V(50/60Hz)
  • 110
  • >90
  • 2700k~6400k Controlable
  • 1%~100%
  • iOS/Andriod
  • tLight InControl
  • Intelligent PIRSensor(sold seperately)
  • ISM Band,IEEE802.15
  • 2.4G
  • tLight USB InControl GateWay or tLight LED desk lamp
    wth GateWay Built in
  • 120
  • 0.95
  • 12
  • (-40F~110F)(-20℃~43℃)
  • Pending
  • Yes
  • CE, FCC, ETL, Energy Star, CEC Pending
  • Ceiling, Pendant, Floor, Torhciere
  • 2.12"(54mm)
  • 50000 Hours
  • 5 Years
  • Pending
  • Pending
